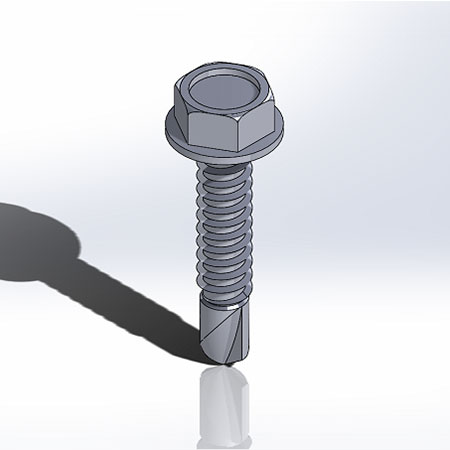

Hex Washer Head Self Drilling Screw

HEX IND WASHER HEAD SELF DRILLING SCREW

• Size  :  M2.9~M6.3  /  #4~#14  /  1/4,5/16
• Length  :  9.5~300mm  /  3/8~12"
• Material  :  Carbon Steel  /  Stainless Steel
• Drilling Point Type  :   #2/#3/#4/#5  /  S point  /  Reduced point
• Attachment :  W/WO  EPDM Bonding Washer
• Surface Treatment :  Zinc plated, Yellow Zinc plated, Black zinc, Zinc Nickel, Mechnical Galvanized, Ruspert,  Slat Spray Test according to customer requirement.
• Standard :  DIN, IFI, JIS, according to customer's drawing
• Package :  Bulk packing, Box packing, Bag packing, Blister
• Product Usage :

1. Apply to metal plate, galvanized steel plate, metal curtain wall, metal light compartment, aluminumdoor and window, indoor and outdoor decoration.
2. General anglesteel, channel steel, iron plate, PC Board and other metal material combininginstallation

• EPDM bonding washer characteristic :

1. It can able to bear high temperature, ozone and environment. It has strong material can elongate and match object when drills with screw.
2. Preventing rain or water into drill hole, so that it's a reliable prevented water gasket.

• EPDM Color :  Black and Grey
• Metal Bonding Flat material :  Hot Dip Galvanized, Aluminum, and Stainless steel

Hex Washer Head Self Drilling Screw has indent on the head, by concave indent for fixing tooling on the head of screw. With/without undercut is one of characteristic that it is commonly bonded with steel and rubber to prevent water into object. DIN7504K is our main screw which meet international standard represent by Hex Washer Head Self Drilling Screw.
